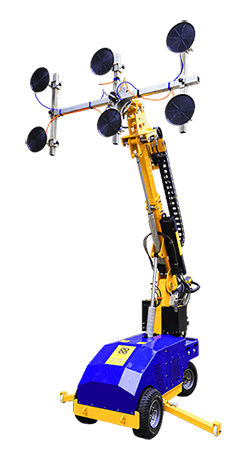

VECTOR 880 OFF ROAD

400 Kg (880 Lbs)

The Vector 880 Off Road is designed to allow a glaziers to unload, transport and install large plates of glass with extreme precision.

  • Lifting capacity up to 880 Lbs
  • Robotic glazing machine
  • Dual vacuum system
  • Dual large rear and front wheels
  • Ideal for on-site with uneven ground
  • Precision adjustment for glazing
  • Narrow foot print & highly maneuverable
  • Pivots glass to side for transport through doors
  • Variable Hydraulic Speed Dial
  • Vacuum cups and modified frame to lift curved glass
  • Foam Vacuum Pads for Stone
  • Electric lifting winch with hook
  • Front lifting hook
  • Purpose built trailer



Vacuum cups and modified
frame to lift curved glass



Foam Vacuum Pads
for Stone


Electric lifting winch with hook





Front lifting hook




Purpose built trailer





SPECIFICATIONS

Capacity: 880lbs
Variable speed control hydraulic system
Overload sensor alarm
Battery: 4x 12v / 55A
Hydraulic System: 24v / 1300watts
4 x 16” Front & Rear Wheel
Battery: 2 x 12v / 100A Deep Cycle
Charger: 110 - 220v
Dual Vacuum Pumps: 2 x 24V
Vacuum Cups: 6 x 12” sprung
Vac Cup Area Height: 47”
Vac Cup Area Width: 73”
Front Wheel Drive
No-Load Climbing: 15% Gradient
Machine Weight: 1770 lbs, Counterweights: 705 lbs
SIDE SHIFT - 170 mm (7")
Manual rotation: 360°

TESTIMONIALS

Kym Wilson
Kym WilsonBayview Glazing QLD AUSTRALIA
Read More
Just a quick note to say what a great piece of equipment. As I am a glazier that has a buggered back and now confined to the shiny seat in the office I reckon if the Nomad was around 25 years ago I would still be glazing commercial. We have just done our first two reglazes both 12.38 laminate 2400 x 3400 aprox 1000 off the ground in a local shop front. Last time it took 3hrs and 6 men to reglaze 1 panel only including scaffold and back pain. This time 4 people and the Nomad, no scaffold and 2 panels took 1 hour including loading the old 12.38 lam on the truck!!!!!! Possibly could have used 3 people but being the first time, are to be sure to be sure! Instant success and the knockers are now believers!! We set a frame approx 2 mtrs square up in the factory and used a piece of 8.38 lam for practice and used 6 people to glaze the panel two times each as a training session before tackling possibly the biggest reglazes in town. Thanks for the prompt service and I will recommend this machine and your business anywhere anytime. Regards extremely happy” Kym Wilson
