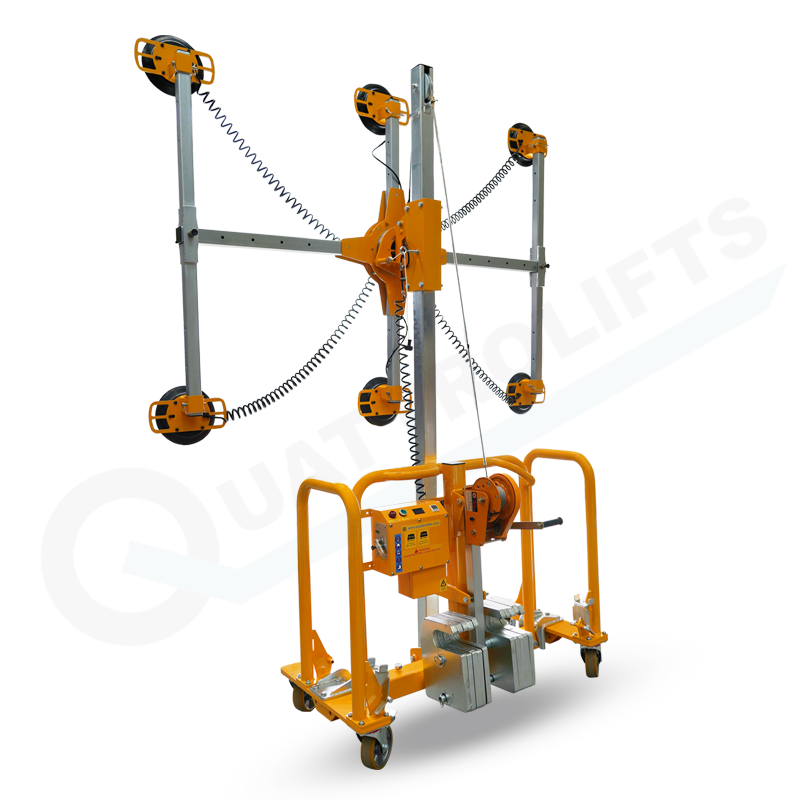

MULE 660

300 Kg (660 Lbs)

The Mule 660 is designed to assist glass workers to unload, rotate and transport large plates of glass in shop.

  • Lifting capacity of 660 Lbs
  • Used as an alternative to an overhead crane to handle heavy sheets of glass
  • About one quarter the cost of a basic overhead crane
  • Loads tilt tables
  • Loads & unloads trucks & edgework machines
  • Small footprint with counterweights
  • Safely load trucks outside the glazing shop
  • Electrical winch and enhanced safety features to increase load rating to 1100 Lbs
  • Dual vacuum system

SPECIFICATIONS

Lifting capacity: 660 Lbs
Upgrade to 1100lbs available
Small footprint with counterweights
Front extension legs without counterweights
Rotates glass 360°
Handles glass 144” x 96”
6 x 12” vacuum cups
4 adjustable/removable cups
12 v battery powered vacuum pump
Castor legs adjust laterally
Mast tilt range +8 to -3 degrees
Machine weight - 660lbs + 330lbs c/w

TESTIMONIALS

Kym Wilson
Kym WilsonBayview Glazing QLD AUSTRALIA
Read More
Just a quick note to say what a great piece of equipment. As I am a glazier that has a buggered back and now confined to the shiny seat in the office I reckon if the Nomad was around 25 years ago I would still be glazing commercial. We have just done our first two reglazes both 12.38 laminate 2400 x 3400 aprox 1000 off the ground in a local shop front. Last time it took 3hrs and 6 men to reglaze 1 panel only including scaffold and back pain. This time 4 people and the Nomad, no scaffold and 2 panels took 1 hour including loading the old 12.38 lam on the truck!!!!!! Possibly could have used 3 people but being the first time, are to be sure to be sure! Instant success and the knockers are now believers!! We set a frame approx 2 mtrs square up in the factory and used a piece of 8.38 lam for practice and used 6 people to glaze the panel two times each as a training session before tackling possibly the biggest reglazes in town. Thanks for the prompt service and I will recommend this machine and your business anywhere anytime. Regards extremely happy” Kym Wilson
