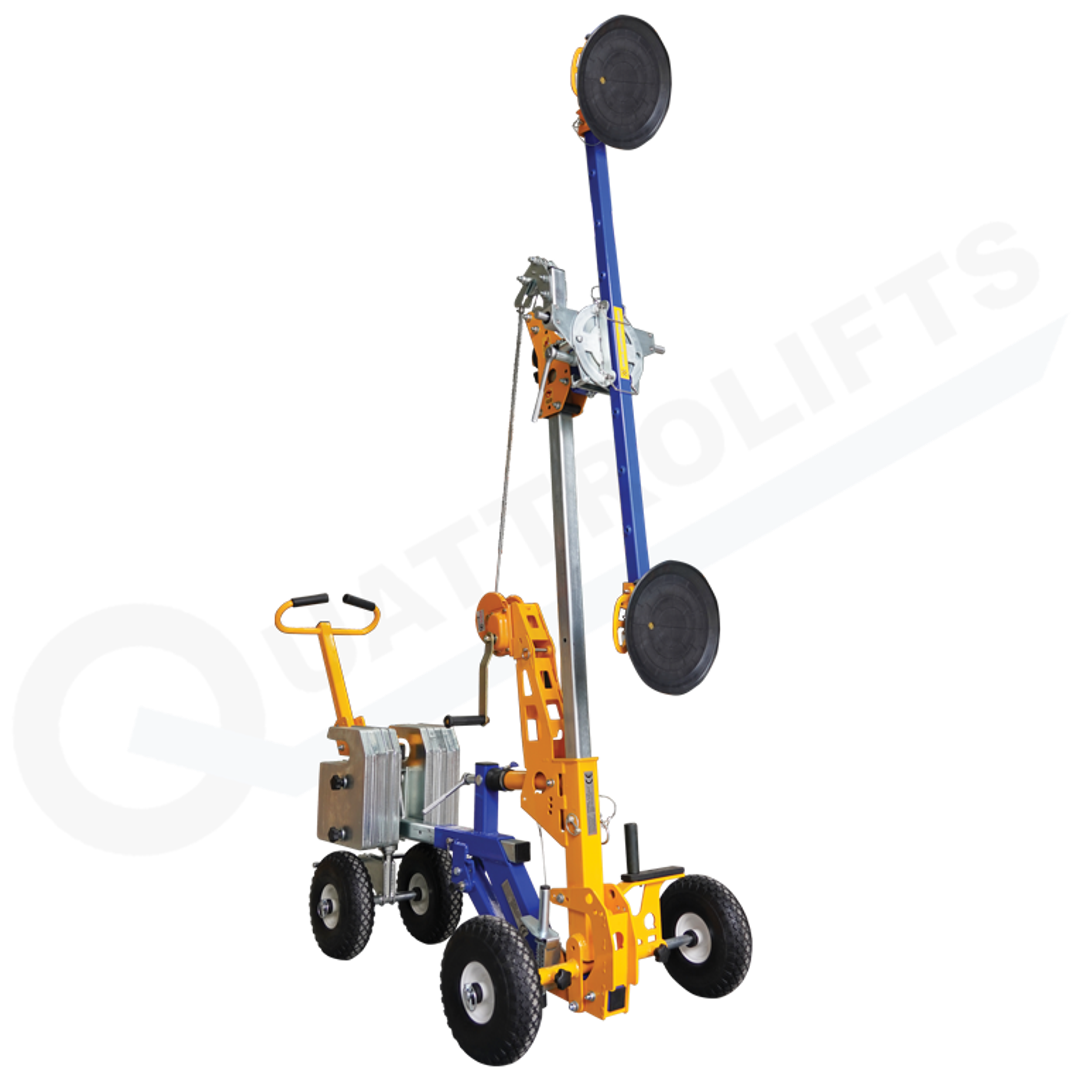

Express 440CW — 440 lbs glass vacuum lifter1 / 5
ExpressOn-site

Express 440CW

Counterweighted stability

The Express 440CW is designed to allow glaziers to unload, transport and install large plates of glass.

440 lbs

Capacity

360°

Rotation

Manual

Drive

In Stock
2-Year Warranty
Since 2006
US-Based Support
Composite panelsSteelGranite/MarblePlasticsWood doors

Standard Features

The Express 440CW is designed to allow glaziers to unload, transport and install large plates of glass.

Applicable MaterialsGlass, Stone, Porcelain, Steel, Insulated Panels
Crate Dimensions - ImperialCrate 1 - 80" x 21" x 18" - 280lbs
Crate Dimensions - MetricCrate 1 - 204cm x 54cm x 46cm - 127kg
Crate Dimensions 2 - ImperialCrate 2 - 43" x 25 x 23" - 530lbs
Crate Dimensions 2 - MetricCrate 2 - 110cm x 64cm x 59cm - 241kg
DrivingManual
Elevation - Cups Vertical910 - 1,865mm (36" - 73")
Machine Weight260kg (572lbs)
Max Lifting Capacity200kg (440lbs)
Max Lifting Height1,865mm (73")
Number of Movements5
Rotation360°
Side Pivot90° to Left
Side Shift125mm (5")
Tilt30°
Vacuum Head MovementsElevation, Rotation, Side Pivot, Side Shift & Tilt
Vacuum Pad Size300mm (12")
Vacuum Pads2
Vacuum SystemManual

See It in Action

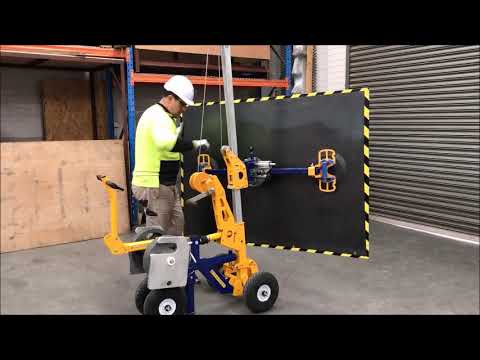

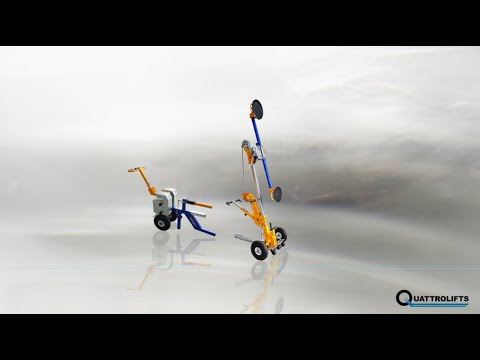

Express 440CW Counterweighted

Express 440CW Showcase

Options & Upgrades

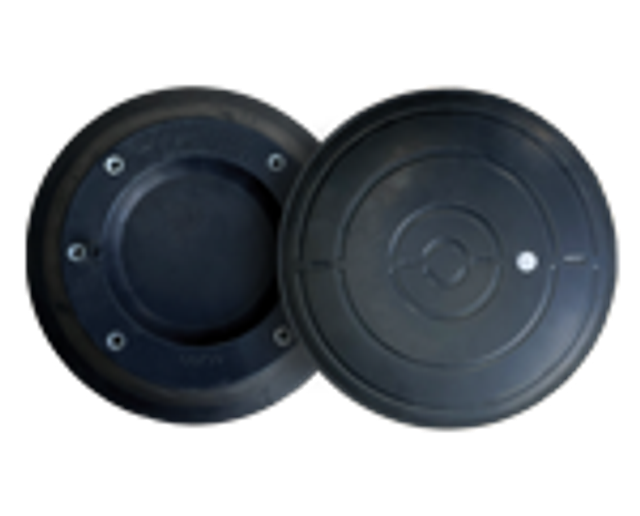

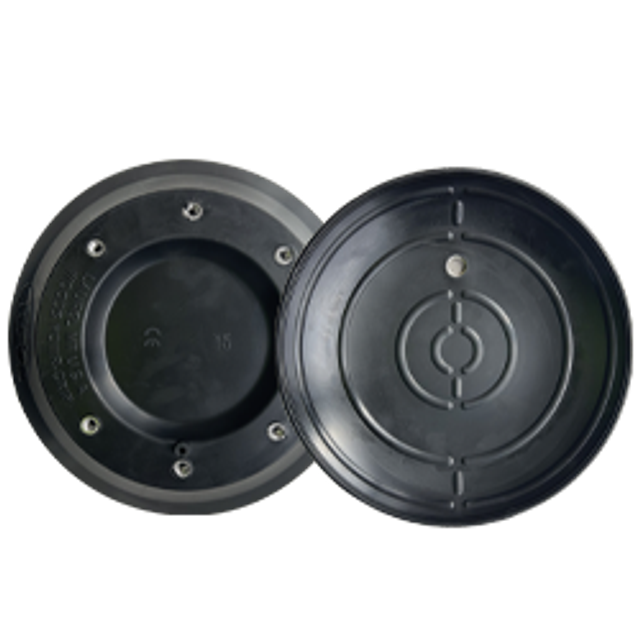

Vacuum Cups for Curved Glass

Vacuum Cups for Curved Glass

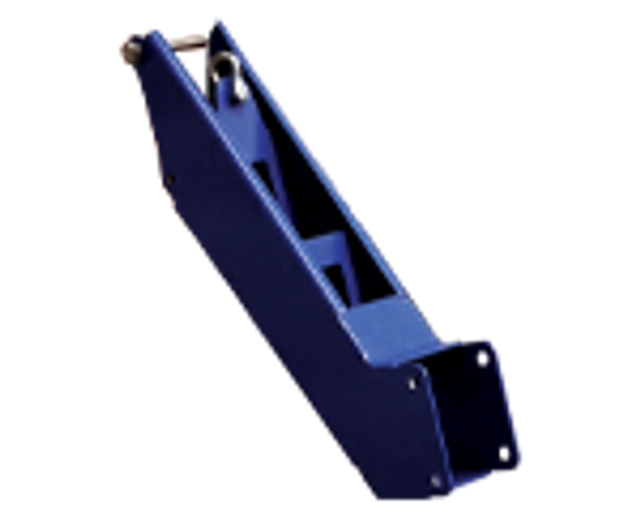

Lower Vacuum Cup Extensions

Lower Vacuum Cup Extensions

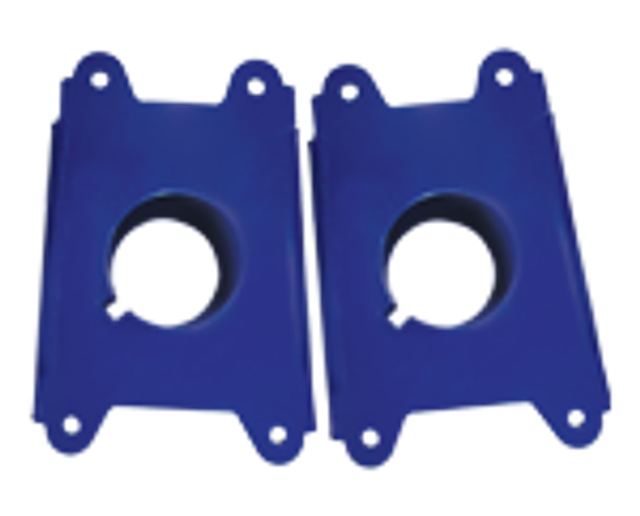

Forward Vacuum Cup Extensions

Forward Vacuum Cup Extensions

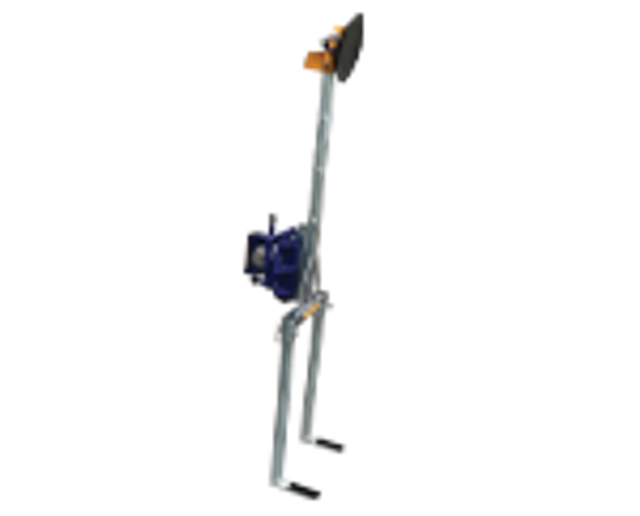

Window Frame Carrier

Window Frame Carrier

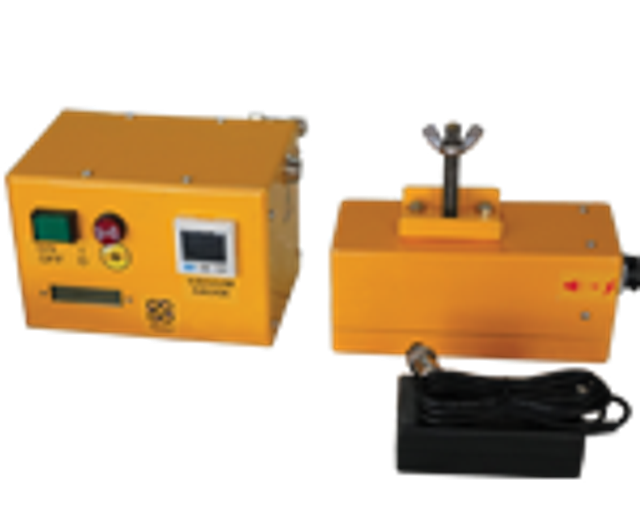

Battery Powered Vacuum Pump

Battery Powered Vacuum Pump

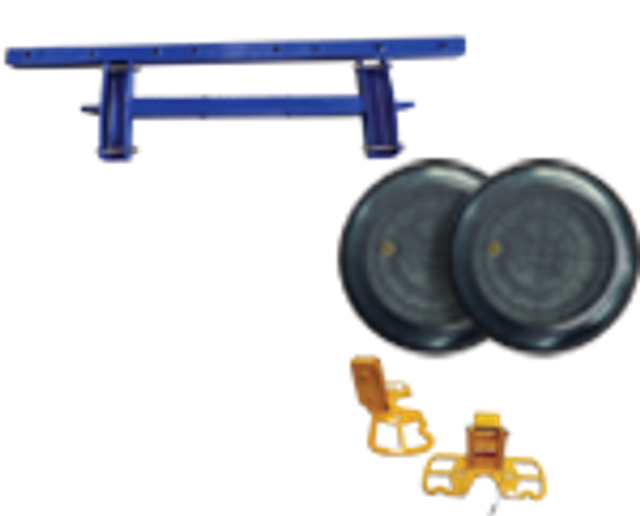

H Frame + Cups

H Frame + Cups

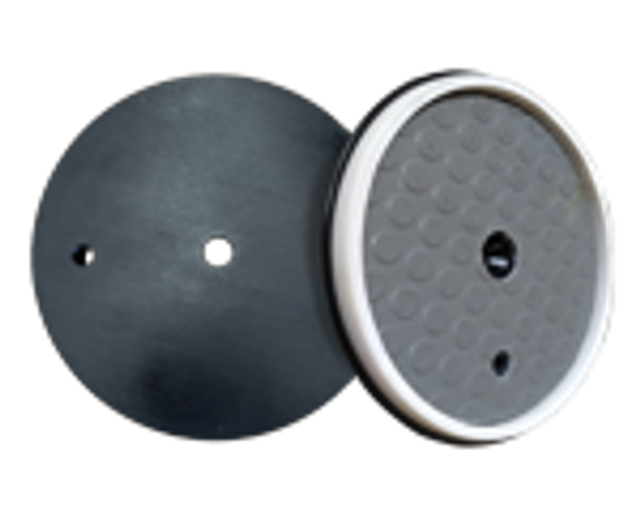

Foam Vacuum Pads for Stone

Foam Vacuum Pads for Stone

Express 440S upgrade (purchase counter-weighted rear half separately)

Frequently Asked Questions

What warranty coverage is included?

All Quattrolifts machines come with a 2-year parts and labor warranty. Extended warranty options are available. Contact our team for details.

Is training available?

Yes. We offer on-site training, remote video training, and comprehensive operator manuals with every purchase. Our technical support team is available at (412) 551-7333.

What maintenance is required?

Regular maintenance includes vacuum cup inspection, battery checks (for powered models), and annual safety certification. We provide a complete maintenance schedule with every machine.

Can I rent before buying?

We offer rental and lease-to-own programs through our dealer network. Contact our sales team at (301) 748-7127 to discuss options.

Can the Express handle curved glass?

Yes, with the optional curved glass vacuum cups. The Express range supports curved glass, stone, and composite panels with the right attachments.

How quickly can one person assemble the Express on-site?

The Express 330T assembles in under 10 minutes. The larger Express models (440CW, 770CWA) take approximately 15-20 minutes.

2-Year Warranty

Parts & labor coverage included

US-Based Support

(412) 551-7333 — Mon–Fri

Spare Parts

Ships within 48 hours

On-Site Training

Available with every purchase
