Vector 880E — 880 lbs glass vacuum lifter1 / 6
VectorOn-site

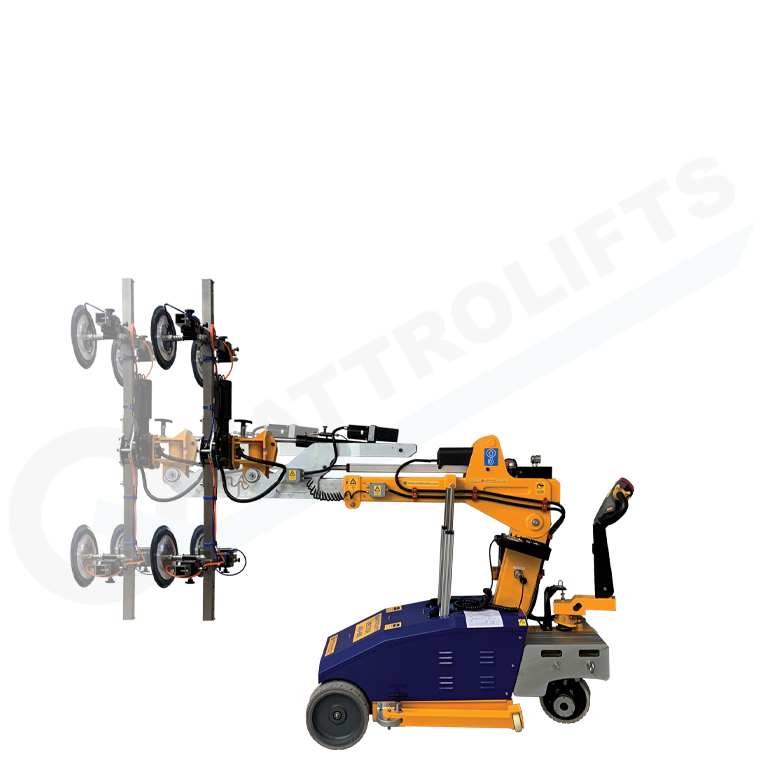

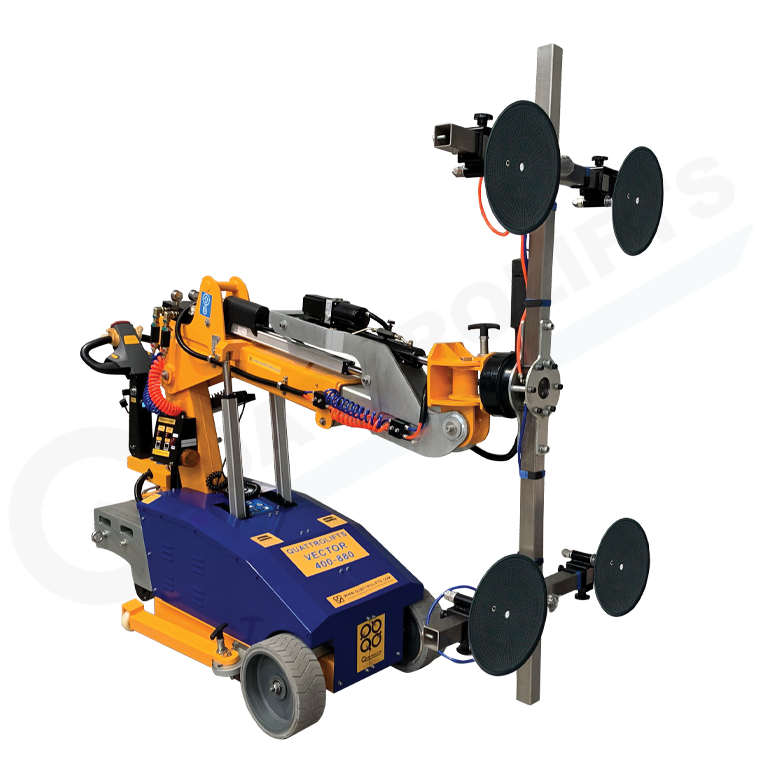

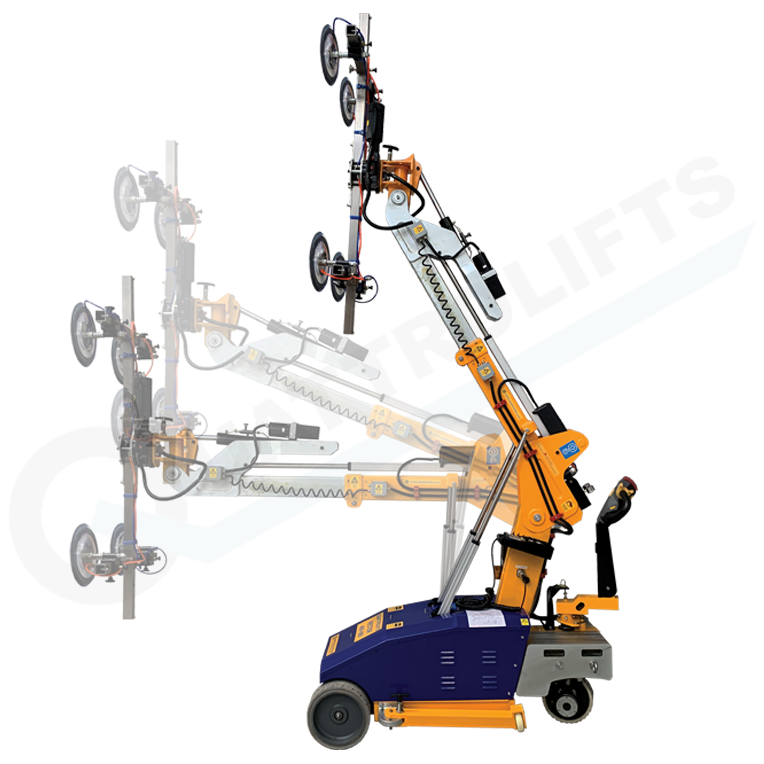

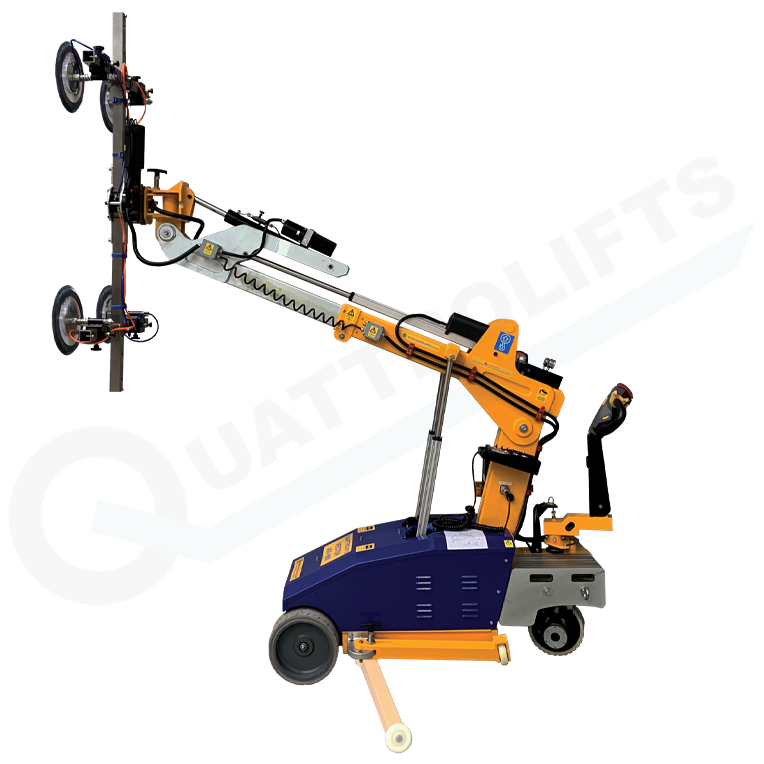

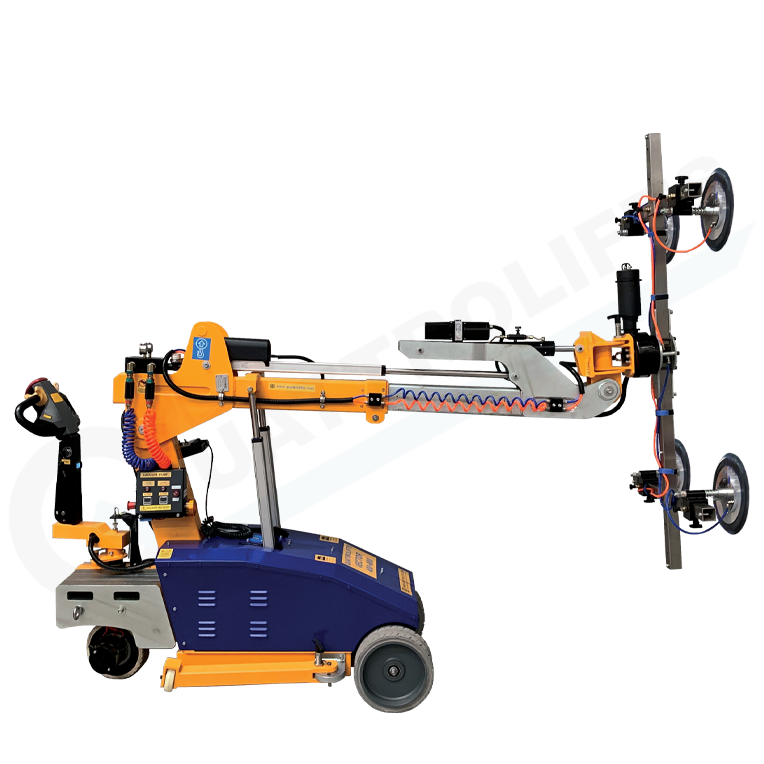

Vector 880E

Compact robotic glazer

The Vector 880E robotic glass lifter comes with powered rotation which allows glaziers to unload, transport and install large plates of glass with extreme precision and greater safety.

880 lbs

Capacity

360°

Rotation

Self-propelled

Drive

In Stock
2-Year Warranty
Since 2006
US-Based Support
Composite panelsSteelGranite/MarblePlasticsWood doors

Standard Features

The Vector 880E robotic glass lifter comes with powered rotation which allows glaziers to unload, transport and install large plates of glass with extreme precision and greater safety.

Max Lifting Capacity400kg (880 lbs)
DrivingSelf-propelled (800W)
Drive Wheel280mm
Rotation360° (powered)
Side Shift100mm (4")
No-Load Lifting Speed18mm/s
No-Load Climbing5% gradient
Vacuum Pumps2 x 24V, 40 lit/min
Vacuum Pads4
Vacuum Pad Size300mm (12") sprung
Vacuum SystemDual pump
Cup Area Height1,200mm (47")
Cup Area Width1,850mm (73")
Battery2 x 12V / 80AH
Charger110–240V
Machine Weight628 kg (1,384 lbs)
Counterweights320 kg (705 lbs)

See It in Action

VECTOR 400E - 880E Sneak Peek

Vector 400E - 880E Training Video

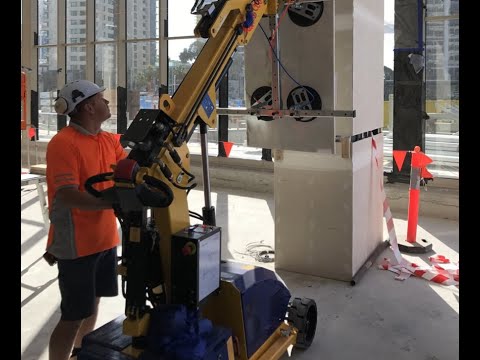

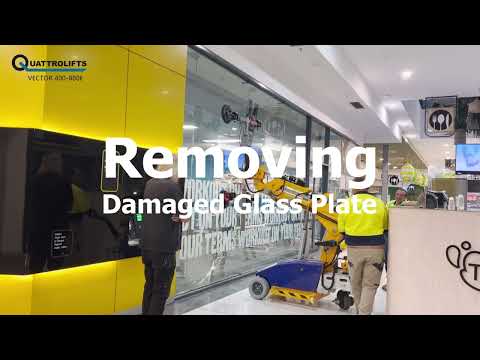

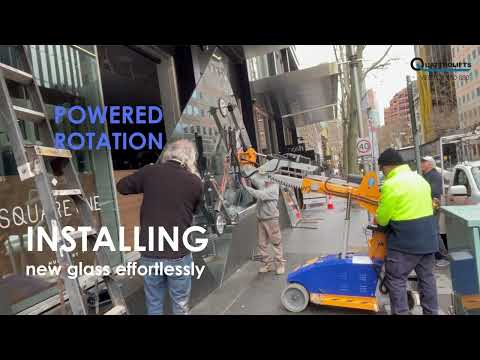

VECTOR 400E - 880E Reglazing Damaged Shopfront

Vector 400E - 880E Stone install

Vector 400E - 880E Showcase

Vector 400E - 880E Glazing Robot With Window Lifter

Vector 400E - 880E Onsite Stone Installation

Options & Upgrades

Mast Extension (1,000mm / 39")

Mast Extension (1,000mm / 39")

Lifting Hook

Lifting Hook

Vacuum Cups for Curved Materials

Vacuum Cups for Curved Materials

Front Lifting Hook

Front Lifting Hook

Vacuum Cups for Curved Glass

Vacuum Cups for Curved Glass

Foam Vacuum Pads for Stone

Foam Vacuum Pads for Stone

Frequently Asked Questions

What warranty coverage is included?

All Quattrolifts machines come with a 2-year parts and labor warranty. Extended warranty options are available. Contact our team for details.

Is training available?

Yes. We offer on-site training, remote video training, and comprehensive operator manuals with every purchase. Our technical support team is available at (412) 551-7333.

What maintenance is required?

Regular maintenance includes vacuum cup inspection, battery checks (for powered models), and annual safety certification. We provide a complete maintenance schedule with every machine.

Can I rent before buying?

We offer rental and lease-to-own programs through our dealer network. Contact our sales team at (301) 748-7127 to discuss options.

Can the Vector operate on rough terrain?

Yes. The Off Road models feature large pneumatic wheels designed for construction sites, gravel, and uneven ground. The Crawler model uses dual rubber tracks for the most demanding terrain.

Does the Vector come with remote control?

Yes. All Vector models include a wired remote control with 5 degrees of movement. Wireless remote control is available as an upgrade option.

2-Year Warranty

Parts & labor coverage included

US-Based Support

(412) 551-7333 — Mon–Fri

Spare Parts

Ships within 48 hours

On-Site Training

Available with every purchase

Last time it took 3hrs and 6 men to reglaze 1 panel. This time 4 people and the machine, no scaffold and 2 panels took 1 hour.

Kym Wilson

Bayview Glazing · QLD, Australia

Trusted by 500+ companies across 20+ countries since 2006 — in construction, manufacturing, and architectural installation.
