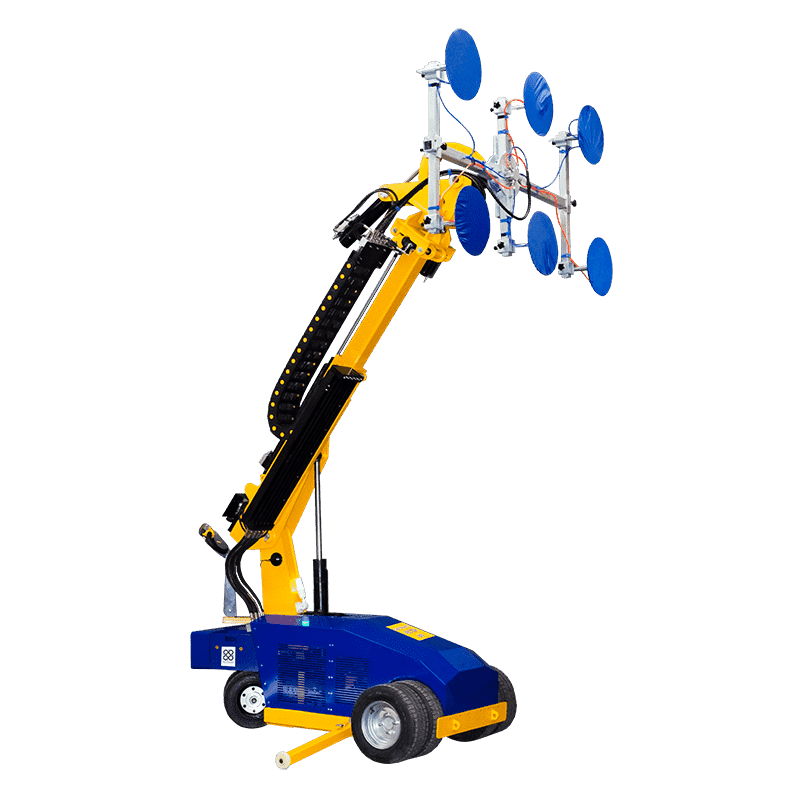

VECTOR 1800 OFF ROAD

800 Kg (1800 Lbs)

The Vector 1800 Off Road is designed to allow a glaziers to unload, transport and install large plates of glass with extreme precision.

  • Lifting capacity up to 1800lbs
  • Dual pump vacuum system as a safety feature
  • Robotic glazing machine
  • Hydraulic rams for durability with precision
  • Remote control allows for precise glass movement
  • 16” wheels all round is ideal for on-site work
  • Variable Hydraulic Speed Dial
  • Both wired & wireless remote controls
  • Six degrees of movement:
    • 360 degree rotation
    • 200mm (8″) side shift
    • 20° side pivot – left + right (by remote) and 90 degree left side pivot (manual)
    • Vertical lift to 4000mm (160″)
    • 100° tilt range
    • 2000mm (80″) forward extension in front of machine

Can also handle:

  • Composite panels
  • Steel
  • Granite/Marble
  • Plastics
  • Wood doors
  • Vacuum cups and modified frame to lift curved glass
  • Foam Vacuum Pads for Stone
  • Electric lifting winch with hook
  • Front lifting hook
  • Purpose built trailer

Vacuum cups and modified frame to lift curved glass



Foam Vacuum Pads for Stone

Electric lifting winch with hook

Dual front wheels

Vector 1800 XR available for extra reach (173”)

SPECIFICATIONS

Capacity: 1800lbs
Wired and Wireless (100ft range) remote controls allow for precise glass movement
Hydraulic System: 24v / 1300watts
Battery: 2x 150 AMP HR
Charger: 110 - 220v x 20 AHr
Vacuum Pumps: 2 x 24V, 35 lit/min
Vacuum Cups: 6 x 16” sprung
Vacuum cup range - 57" - 81"
No-Load Lifting: 3/4 in/s
No-Load Climbing: 8% Gradient
SIDE SHIFT - 4.3"
Hydraulic rotation: 360°
Two front 18” puncture proof wheels (Option for two more)
Two rear 18” solid filled wheels
Outer wheels can be added for extra stability/traction
Backup wired remote control
Machine Weight: 2535 lbs, Counterweights: 1213 lbs

TESTIMONIALS

Kym Wilson
Kym WilsonBayview Glazing QLD AUSTRALIA
Read More
Just a quick note to say what a great piece of equipment. As I am a glazier that has a buggered back and now confined to the shiny seat in the office I reckon if the Nomad was around 25 years ago I would still be glazing commercial. We have just done our first two reglazes both 12.38 laminate 2400 x 3400 aprox 1000 off the ground in a local shop front. Last time it took 3hrs and 6 men to reglaze 1 panel only including scaffold and back pain. This time 4 people and the Nomad, no scaffold and 2 panels took 1 hour including loading the old 12.38 lam on the truck!!!!!! Possibly could have used 3 people but being the first time, are to be sure to be sure! Instant success and the knockers are now believers!! We set a frame approx 2 mtrs square up in the factory and used a piece of 8.38 lam for practice and used 6 people to glaze the panel two times each as a training session before tackling possibly the biggest reglazes in town. Thanks for the prompt service and I will recommend this machine and your business anywhere anytime. Regards extremely happy” Kym Wilson
